Port Replicator :
MPC-160PR
Interface
FDD, Serial, Parallel, USB, PS/2, video
Dimensions
210(W) x 89(D) x 27(H)mm
(or 8.3(W) x 3.5(D) x 1.1(H) inch)
Weight
190g approx.(or 0.4 lbs)
Floppy Disk Drive (via Port Replicator) :
MPC-140FDDE
Memory capacity
3.5-inch 1.44MB
Dimensions
101(W) x 146(D) x 17.2(H)mm
(or 4.0(W) x 5.7(D) x 0.7(H) inch)
Weight
250g approx.(or 0.5 lbs)
CD-ROM Drive :
MPC-141CDDE
Data transmission speed
1800KB/s (at outer diameter)
Dimensions
130(W) x 162.8(D) x 24.3(H)mm
(or 5.1(W) x 6.4(D) x 1.0(H) inch)
Weight
330g approx.(or 0.7 lbs)

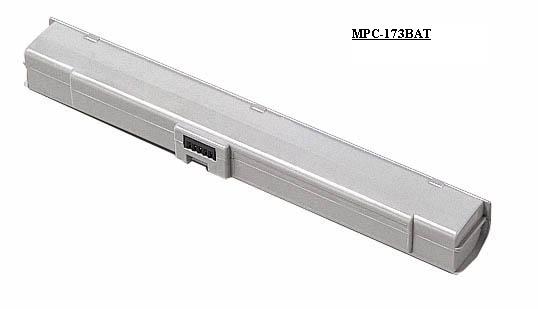

Standard battery pack(rechargeable):
MPC-173BAT
Operating duration
3 hours approx.
Dimensions
206(W) x 21.5(D) x 25(H)mm
(or 8.1(W) x 0.8(D) x 1.0(H) inch)
Weight
170g approx.(or 0.3 lbs)
Large-capacity battery pack (rechargeable):
MPC-174LBAT
Operating duration
6 hours approx.
Dimensions
206(W) x 46(D) x 25(H)mm
(or 8.1(W) x 1.8(D) x 1.0(H) inch)
Weight
320g approx.(or 0.7 lbs)
Battery pack recharger:
MPC-570CHG
Dimensions
239(W) x 84(D) x 61.8(H)mm
(or 9.4(W) x 3.3(D) x 2.4(H) inch)
Weight
260g approx.(or 0.5 lbs)
AC adaptor :
MPC-577ADPE
Rated
100-240VAC
Input/Output
50/60 Hz, 16VDC 2.8A
Dimensions
100(W) x 50(D) x 24(H)mm
(or 3.9(W) x 1.9(D) x 0.9(H) inch)
Weight
240g approx.(or 0.5 lbs)

Expansion memory board:
MPC-151RAM
32 MB(SO-DIMM memory board)
MPC-152RAM
64 MB(SO-DIMM memory board)
